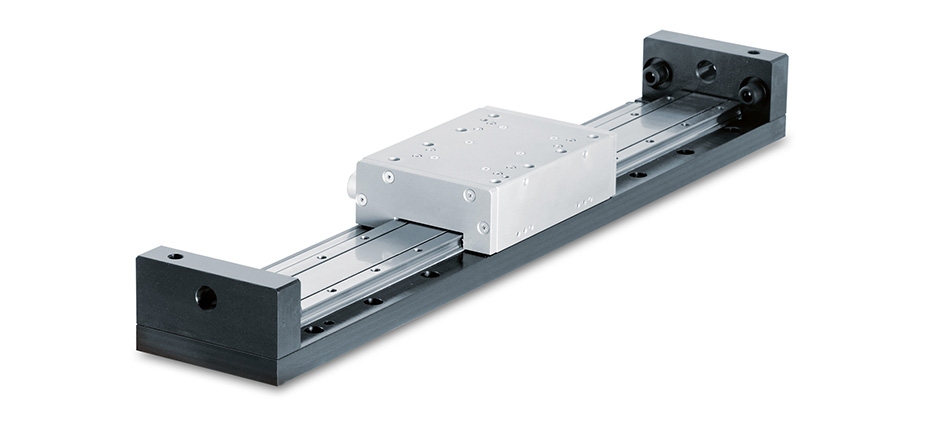

HN 200 linear motor axes.

Marca

The latest in uncompromising, highly dynamic drive technology for your basic axis. Highly integrated and ready for installation. Compact and precise ball-type linear guides and an absolute measuring system are just as much a part of the concept as the automatic lubrication. The HN version is available in many different sizes – with a robust steel body or lightweight aluminium body. The aluminium profile-based HG axes can also be used in areas in which cost factors have typically made conventional drives the standard choice in the past: the most advanced linear technology at extremely attractive conditions. Both versions impress with their smooth movements and maximum dynamics.

TECHNICAL DATA
. Voltage range: 200-480 V
. Max. acceleration: 40 m/s2
. Max. speed: 4 m/s
. Nominal force: 250 N
. Peak force: 700 N
. Peak current: 11.2 A
. Max. stroke: bis 1000 mm in 100 mm; > 1000 mm auf Anfrage
. Repeat accuracy: +/-0.0025mm
. Max. recommended load: 50 kg
. Mass of the guide rail with 0 mm stroke: 9.59 kg (Alu)
. Mass of the guide rail per 100 mm stroke: 2.22 kg (Alu)
. Mass of carrier: 8.1 kg (Alu)

LOAD DATA (static)
. Max. static moment about the X-axis: 500 Nm
. Max. static moment about the Y-axis: 200 Nm
. Max. static moment about the Z-axis: 500 Nm
. Max. static force in the Y-axis: 750 N
. Max. static force in the Z-axis: 1000 N

LOAD DATA (dynamic)
. Max. dynamic moment about the X-axis: 80 Nm
. Max. dynamic moment about the Y-axis: 40 Nm
. Max. dynamic moment about the Z-axis: 80 Nm
. Max. dynamic force in the X-axis: 250 N
. Max. dynamic force in the Z-axis: 500 N

ENCODER
. Balluff sin/cos
. Balluff BISS
. Balluff SSI

More Info

Videos

Downloads

Links

Mais Info

Application Example

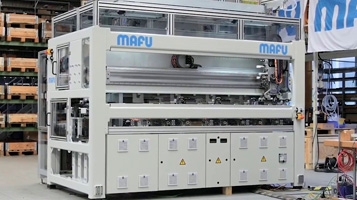

APPLICATION EXAMPLE: Mafu
Large axes, small springs

Spring fitting system for the automotive industry: eight processing stations, 24 axes over six square metres

Challenge
MAFU Automation is a specialist in spring disentangling and feeding. For a highly sophisticated spring fitting system within motor vehicle assistance systems, some 600 springs per minute needed to be positioned in the boreholes of workpiece holders while ensuring extremely high availability. The high performance requirements as well as the small amount of space available presented further challenges.

SOLUTION

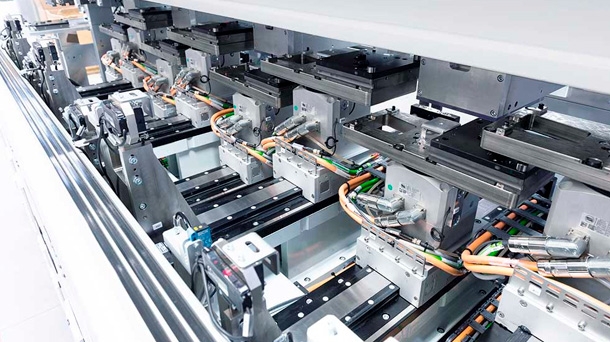

The backbone of the system is a powerful, 2.8 metre-long customer-specific linear motor axis, which was produced specifically for this application. It requires just one second to move its carriage to each user-programmable position. With a cycle time of just 4.5 seconds, the workpiece holders are distributed over eight parallel processing stations. The HN200 linear motor axes used here with attached ST140 rotating unit facilitate the requisite placement frequency of 600 springs per minute. Alongside the cycle speed, the high service life requirement of 30 million cycles was the key factor. To simplify installation, all assemblies (including the power supply and lubrication system) were delivered fully pre-assembled as system components.
