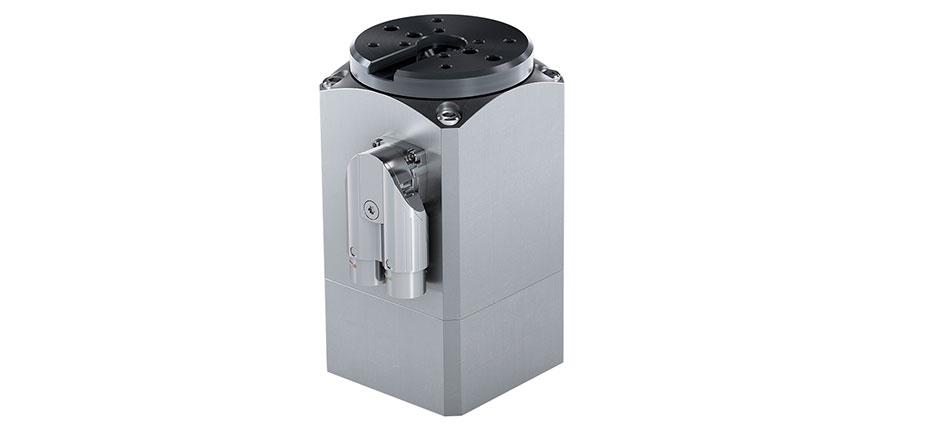

High-torque rotating units ST 75.
Marca
The ST rotating units with absolute rotary encoder are the ideal choice for precise and highly dynamic rotary, swivel and gripping movements. Whether used to supply and position components, as swivel units for grippers or as a replacement for servomotors with planetary gears, the ST rotating units offer the perfect solution. Their compactness, light weight, versatile attachment options, as well as the various designs and other options available allow a broad range of applications to be covered.
GENERAL INFORMATION
. Max. recommended diameter of rotating plate: approximately 400 mm
. Small compact rotating units for end-of-arm or small rotary applications
. The rotating units are available in three different motor sizes with the same flange dimensions
OPTIONS
. The rotating units can optionally be equipped with a brake
. A choice of various encoder accuracies ensures maximum design flexibility
TECHNICAL DATA
ST075-1
Cont. torque: 0,50 Nm
Peak torque: 1.40 Nm
Max. speed: 3500 rpm
Friction: 0.5 Nm
ST075-2
Cont. torque: 1.00 Nm
Peak torque: 2.80 Nm
Max. speed: 2000 rpm
Friction: 0.5 Nm
ST075-3
Cont. torque: 1.40 Nm
Peak torque: 4.20 Nm
Max. speed: 1800 rpm
Friction: 0.5 Nm
