Pick-o-Mat.

Marca

Pick-o-Mat

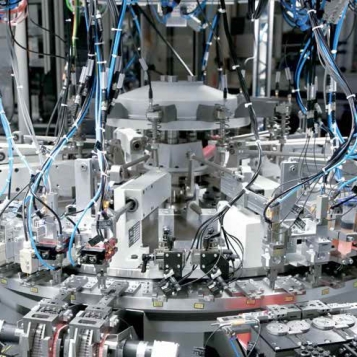

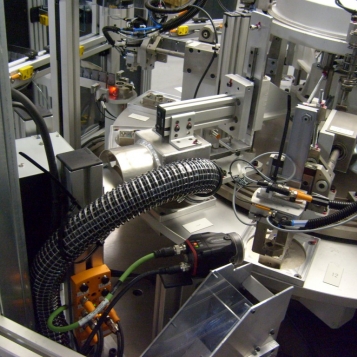

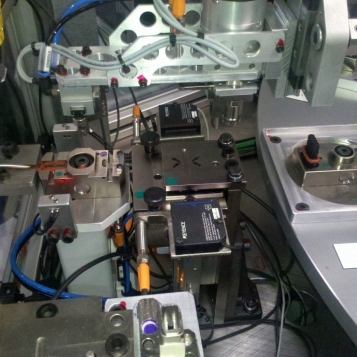

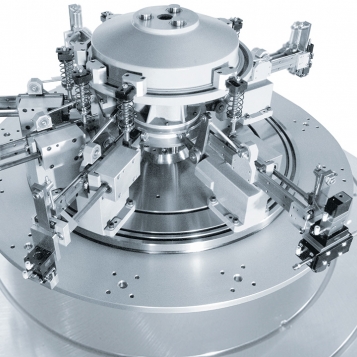

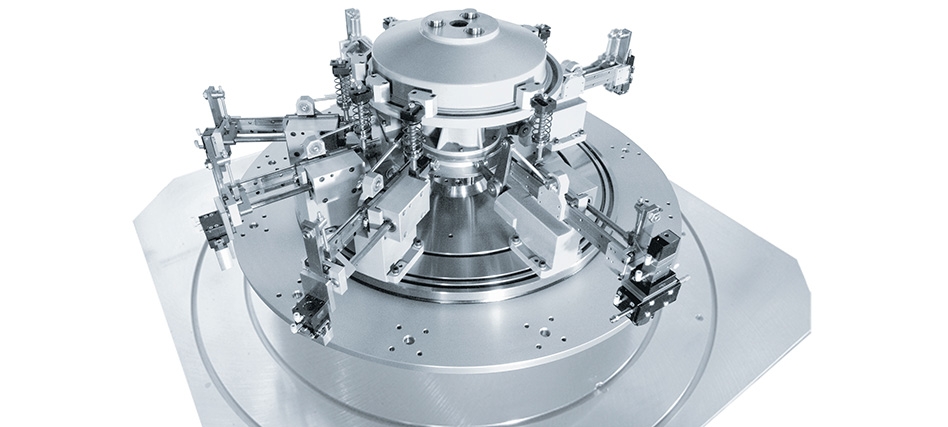

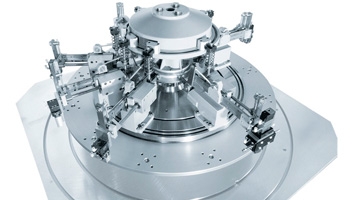

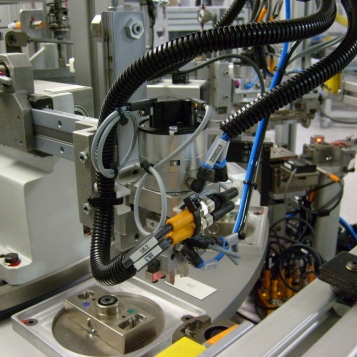

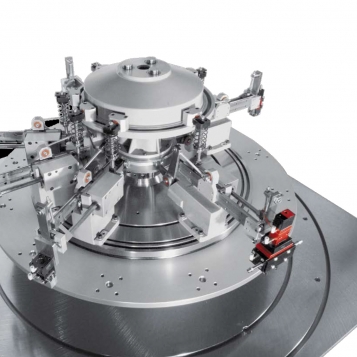

The Pick-o-Mat is in a class of its own: the electromechanical automated assembly system unites a rotary indexing table with up to 24 handling, pressing and lifting modules, which are synchronised via a central drive. Different stroke variants can be combined easily. The elegant and powerful drive solution works without pneumatic handling mechanisms and is available in two sizes.

PM 1100
TECHNICAL DATA
. Rotary indexing table, basis: TC 320T (for specifications, see TC-T rotary indexing tables)
. Max. number of modules: 16
. Number of stations on rotary table: 4 to 36
. Diameter of stationary module plate: 760 mm
. Diameter of rotary plate: Standard 1050 mm (other diameters possible)
. Available base frames: SR 0200B or SK 0300B

PM 1500
TECHNICAL DATA
. Rotary indexing table, basis: TR 1100A (for specifications, see TR rotary indexing tables)
. Max. number of modules: 24
. Number of stations on rotary table: 6 to 36
. Diameter of stationary module plate: 1210 mm
. Diameter of rotary ring: Standard 1500 mm (other diameters possible)
. Possible base frames: SR 0300B or SK 0300B
