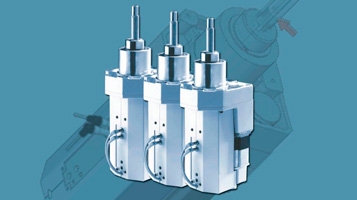

SH handling system.

The resounding success enjoyed by the SH 75 is largely thanks to its versatile and flexible deployment options.

The lifting and rotary axes are user-programmable independent of one another – making the axis combination suitable for a wide range of applications, including varying tasks. A high power density, extremely compact dimensions, as well as fast and convenient start-up using the WEISS Application Software are further plus points. The new integrated servo motors have catapulted the unit into new categories of dynamics and precision.

GENERAL INFORMATION
. The lifting-rotating unit can be equipped with functional safety (on request)

TECHNICAL DATA
. Voltage range: 200-600 VAC Effektiv
. Peak current: 7.6 A
. Max. rotation speed: 220 min-1
. Max. acceleration torque: 12 Nm
. Max. speed: 0.5 m/s
. Peak current: 1200 N
. Max. stroke: 75 mm
. Repeat accuracy (rotation): 180 arcsec (± 90”)
. Repeat accuracy (stroke): 0.02 mm
. Max. intertia: 0.06 kgm²
. Max. recommended load: 10 kg
. Concentricity when retracted: 0.06 mm
. Concentricity when extended: 0.08 mm

LOAD DATA (on the drive shaft)
. Static axial force: 1200 N
. Static radial force (extended): 500 N
. Static radial force (retracted): 1500 Nm
. Static torque: 10 Nm

ENCODER
. Sick Hiperface
